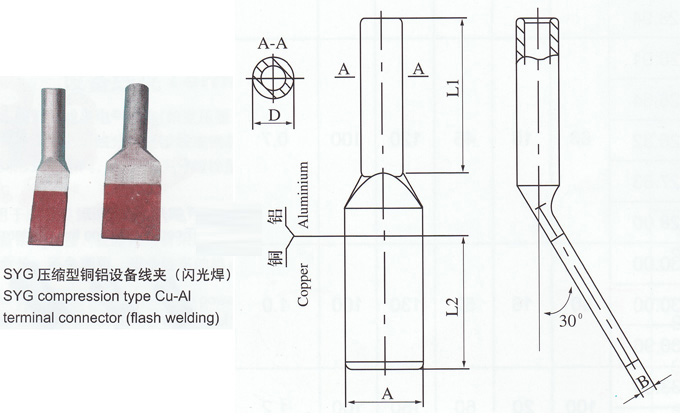

1)铜铝过渡设备线夹(压缩型A型)
Al-Cu transition terminal connectors(compression type A) |
 |
型号
Catalog No. |
适用导线
Suitable conductor |
主要尺寸Dimensions(mm) |
| A |
B |
D |
L1 |
L2 |
| SYG-50A |
LGJ-50 |
30 |
5.0 |
18 |
60 |
60 |
| SYG-70A |
LGJ-70 |
40 |
5.0 |
22 |
70 |
80 |
| SYG-95A |
LGJ-95 |
40 |
5.0 |
26 |
80 |
80 |
| SYG-120A |
LGJ-120 |
50 |
5.0 |
26 |
80 |
80 |
| SYG-150A |
LGJ-150 |
50 |
5.0 |
30 |
80 |
80 |
| SYG-185A |
LGJ-185 |
50 |
6.3 |
32 |
80 |
80 |
| SYG-240/30A |
LGJ-240/30 |
50 |
6.3 |
36 |
80 |
100 |
| SYG-300/15A |
LGJ-300/15 |
63 |
8.0 |
40 |
100 |
110 |
| SYG-300/20A |
LGJ-300/20 |
63 |
8.0 |
40 |
100 |
110 |
| SYG-300/25A |
LGJ-300/25 |
63 |
8.0 |
40 |
100 |
110 |
| SYG-300/40A |
LGJ-300/40 |
63 |
8.0 |
40 |
100 |
110 |
| SYG-400/20A |
LGJ-400/20 |
63 |
8.0 |
45 |
100 |
120 |
| SYG-400/25A |
LGJ-400/25 |
63 |
8.0 |
45 |
100 |
120 |
| SYG-400/35A |
LGJ-400/35 |
63 |
8.0 |
45 |
100 |
120 |
| SYG-400/50A |
LGJ-400/50 |
63 |
8.0 |
45 |
100 |
120 |
| SYG-500/35A |
LGJ-500/35 |
80 |
8.0 |
52 |
100 |
130 |
| SYG-500/45A |
LGJ-500/45 |
80 |
8.0 |
52 |
100 |
130 |
| SYG-500/65A |
LGJ-500/65 |
80 |
8.0 |
52 |
100 |
130 |
| SYG-630/45A |
LGJ-630/45 |
100 |
10.0 |
60 |
100 |
150 |
| SYG-630/55A |
LGJ-630/55 |
100 |
10.0 |
60 |
100 |
150 |
| SYG-630/80A |
LGJ-630/80 |
100 |
10.0 |
60 |
100 |
150 |
| SYG-800/55A |
LGJ-800/55 |
125 |
12.5 |
65 |
125 |
170 |
| SYG-800/70A |
LGJ-800/70 |
125 |
12.5 |
65 |
125 |
170 |
| SYG-800/100A |
LGJ-800/100 |
125 |
12.5 |
65 |
125 |
170 | |
|

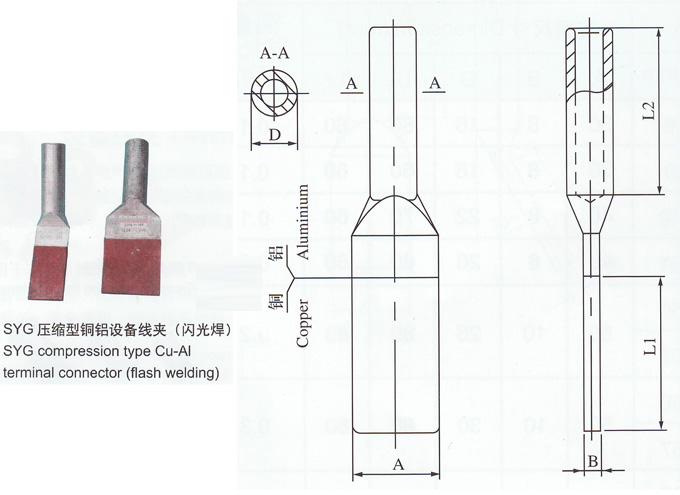

2)铜铝过渡设备线夹(压缩型B型)
Al-Cu transition terminal connectors(compression type B) |
 |
型号
Catalog No. |
适用导线
Suitable conductor |
主要尺寸Dimensions(mm) |
| A |
B |
D |
L1 |
L2 |
| SYG-50B |
LGJ-50 |
30 |
5.0 |
18 |
60 |
60 |
| SYG-70B |
LGJ-70 |
40 |
5.0 |
22 |
70 |
80 |
| SYG-95B |
LGJ-95 |
40 |
5.0 |
26 |
80 |
80 |
| SYG-120B |
LGJ-120 |
50 |
5.0 |
26 |
80 |
80 |
| SYG-150B |
LGJ-150 |
50 |
5.0 |
30 |
90 |
80 |
| SYG-185B |
LGJ-185 |
50 |
6.3 |
32 |
90 |
80 |
| SYG-240/30B |
LGJ-240/30 |
50 |
6.3 |
36 |
100 |
80 |
| SYG-300/15B |
LGJ-300/15 |
63 |
8.0 |
40 |
110 |
100 |
| SYG-300/20B |
LGJ-300/20 |
63 |
8.0 |
40 |
110 |
100 |
| SYG-300/25B |
LGJ-300/25 |
63 |
8.0 |
40 |
110 |
100 |
| SYG-300/40B |
LGJ-300/40 |
63 |
8.0 |
40 |
110 |
100 |
| SYG-400/20B |
LGJ-400/20 |
63 |
8.0 |
45 |
120 |
100 |
| SYG-400/25B |
LGJ-400/25 |
63 |
8.0 |
45 |
120 |
100 |
| SYG-400/35B |
LGJ-400/35 |
63 |
8.0 |
45 |
120 |
100 |
| SYG-400/50B |
LGJ-400/50 |
63 |
8.0 |
45 |
120 |
100 |
| SYG-500/35B |
LGJ-500/35 |
80 |
8.0 |
52 |
130 |
100 |
| SYG-500/45B |
LGJ-500/45 |
80 |
8.0 |
52 |
130 |
100 |
| SYG-500/65B |
LGJ-500/65 |
80 |
8.0 |
52 |
130 |
100 |
| SYG-630/45B |
LGJ-630/45 |
100 |
10.0 |
60 |
150 |
100 |
| SYG-630/55B |
LGJ-630/55 |
100 |
10.0 |
60 |
150 |
100 |
| SYG-630/80B |
LGJ-630/80 |
100 |
10.0 |
60 |
150 |
100 |
| SYG-800/55B |
LGJ-800/55 |
125 |
12.5 |
65 |
170 |
125 |
| SYG-800/70B |
LGJ-800/70 |
125 |
12.5 |
65 |
170 |
125 |
| SYG-800/100B |
LGJ-800/100 |
125 |
12.5 |
65 |
170 |
125 | |
网源电力科技有限公司位于中国东方电器城—柳市，是一家集研究、开发、生产、销售、服务于一体电力科技企业，专业生产压缩型铜铝过渡设备线夹，
C型线夹，
创通线夹，
H型线夹，电力金具、冷/热缩电缆附件、合成绝缘子、高压隔离开关、跌落式熔断器、氧化锌避雷器、真空断路器、负荷分界开关等产品！
