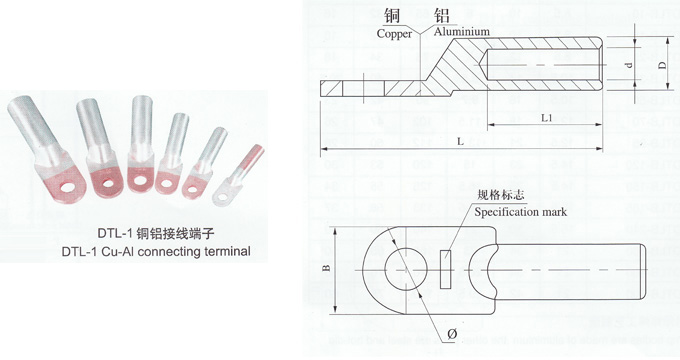

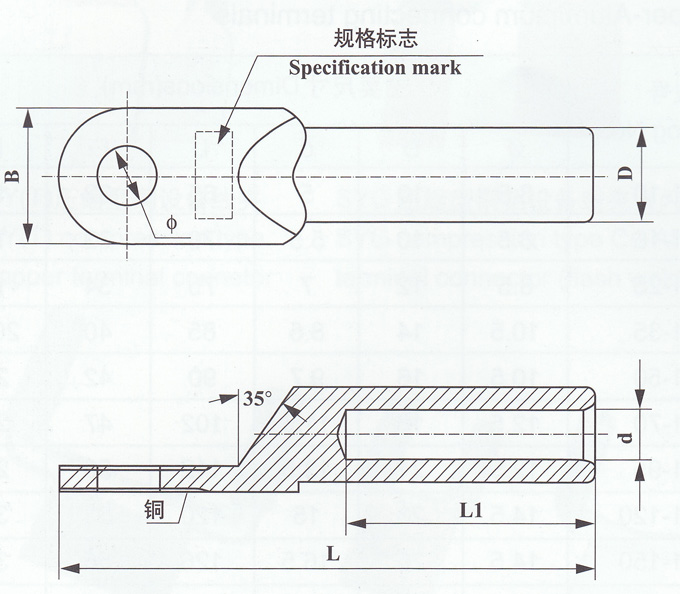

| 1）铜铝接线端子 Copper-Aluminium connecting terminals |
 |
| 型号Catalog No. |
主要尺寸Dimensions(mm) |
| Ф |
D |
d |
L |
L1 |
B |
|
DTL-1-10 |
8.5 |
10 |
5 |
65 |
32 |
16 |
| DTL-1-16 |
8.5 |
10 |
5.5 |
70 |
32 |
16 |
| DTL-1-25 |
8.5 |
12 |
7 |
75 |
34 |
18 |
| DTL-1-35 |
10.5 |
14 |
8.5 |
85 |
40 |
20.5 |
| DTL-1-50 |
10.5 |
16 |
9.7 |
90 |
42 |
23 |
| DTL-1-70 |
12.5 |
18 |
11.5 |
102 |
47 |
26 |
| DTL-1-95 |
12.5 |
21 |
13.5 |
112 |
50 |
28 |
| DTL-1-120 |
14.5 |
23 |
15 |
120 |
53 |
30 |
| DTL-1-150 |
14.5 |
25 |
16.5 |
126 |
55 |
34 |
| DTL-1-185 |
16.5 |
27 |
18.5 |
133 |
58 |
37 |
| DTL-1-240 |
16.5 |
30 |
21 |
140 |
60 |
40 |
| DTL-1-300 |
21 |
34 |
23 |
165 |
65 |
50 |
| DTL-1-400 |
21 |
38 |
26.5 |
170 |
70 |
50 |
| DTL-1-500 |
21 |
42 |
29.5 |
190 |
75 |
60 |
| DTL-1-630 |
- |
54 |
34 |
225 |
80 |
80 |
| DTL-1-800 |
- |
60 |
38 |
270 |
90 |
100 |
|

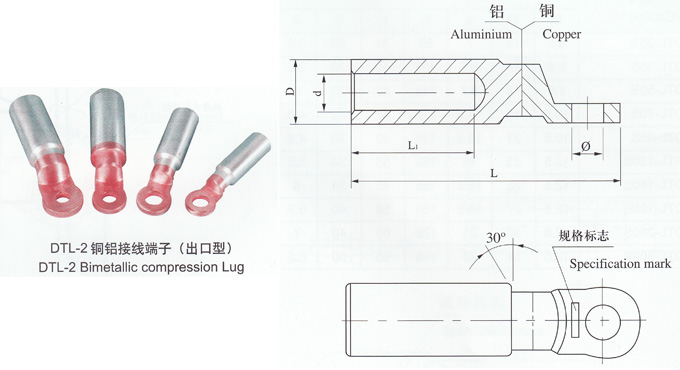

| 2）铜铝接线端子（出口型） Bimetallic compression lug Cu-Al |
 |
| 型号Catalog No. |
主要尺寸Dimensions(mm) |
| Ф |
D |
d |
L |
L1 |
|
DTL-2-16 |
13 |
16 |
5.5 |
90 |
42 |
|
DTL-2-25 |
13 |
16 |
6.5 |
90 |
42 |
|
DTL-2-35 |
13 |
16 |
8 |
90 |
42 |
|
DTL-2-50 |
13 |
20 |
9 |
90 |
43 |
|
DTL-2-70 |
13 |
20 |
11 |
90 |
43 |
|
DTL-2-95 |
13 |
20 |
12.5 |
90 |
43 |
|
DTL-2-120 |
13 |
25 |
13.7 |
115 |
60 |
|
DTL-2-150 |
13 |
25 |
15.5 |
118 |
60 |
|
DTL-2-185 |
13 |
32 |
17.5 |
122 |
60 |
|
DTL-2-240 |
13 |
32 |
19.5 |
122 |
60 |
|
DTL-2-300 |
13 |
34 |
22.5 |
125 |
62 |
|
| 3）铜铝接线端子（爆炸焊） Cu-Al terminal (Explosive welding) |
 |
| 型号Catalog No. |
主要尺寸Dimensions(mm) |
| Ф |
D |
d |
L |
L1 |
B |
|
DTLB-10 |
8.5 |
10 |
5 |
65 |
32 |
16 |
| DTLB-16 |
8.5 |
10 |
5.5 |
70 |
32 |
16 |
| DTLB-25 |
8.5 |
12 |
7 |
75 |
34 |
18 |
| DTLB-35 |
10.5 |
14 |
8.5 |
85 |
40 |
20.5 |
| DTLB-50 |
10.5 |
16 |
9.7 |
90 |
42 |
23 |
| DTLB-70 |
12.5 |
18 |
11.5 |
102 |
47 |
26 |
| DTLB-95 |
12.5 |
21 |
13.5 |
112 |
50 |
28 |
| DTLB-120 |
14.5 |
23 |
15 |
120 |
53 |
30 |
| DTLB-150 |
14.5 |
25 |
16.5 |
126 |
55 |
34 |
| DTLB-185 |
16.5 |
27 |
18.5 |
133 |
58 |
37 |
| DTLB-240 |
16.5 |
30 |
21 |
140 |
60 |
40 |
| DTLB-300 |
21 |
34 |
23 |
165 |
65 |
50 |
| DTLB-400 |
21 |
38 |
26.5 |
170 |
70 |
50 |
| DTLB-500 |
21 |
42 |
29.5 |
190 |
75 |
60 | 采用爆炸焊工艺制造。Clamp are made of aluminium, the other parts are steel and hot-dip galvanized.
|
| 4）铜铝接线端子（双孔型） Cu-Al terminal (dual hole type) |
| 型号Catalog No. |
主要尺寸Dimensions(mm) |
| Ф |
D |
d |
L |
L1 |
B |
A |
|
DTL-25S |
8.5 |
12 |
7 |
95 |
34 |
20 |
3.2 |
|
DTL-35S |
8.5 |
14 |
8.5 |
107 |
40 |
23 |
3.6 |
|
DTL-50S |
8.5 |
16 |
9.7 |
115 |
42 |
23 |
4 |
|
DTL-70S |
10.5 |
18 |
11.5 |
128 |
47 |
28 |
4.5 |
|
DTL-95S |
10.5 |
21 |
13.5 |
138 |
50 |
28 |
4.8 |
|
DTL-120S |
12.5 |
23 |
15 |
152 |
53 |
34 |
5.5 |
|
DTL-150S |
12.5 |
25 |
16.5 |
155 |
55 |
34 |
6 |
|
DTL-185S |
12.5 |
27 |
18.5 |
168 |
58 |
40 |
6.7 |
|
DTL-240S |
12.5 |
30 |
21 |
172 |
60 |
40 |
7 |
|
DTL-300S |
12.5 |
34 |
23 |
195 |
65 |
50 |
8.5 | |
